API Reference

The Rubix node exposes a single RESTful HTTP API, served entirely under /rubix/v1/...: DIDs, balances, transactions, NFTs, FTs, smart contracts, signatures, and node, bootstrap, quorum, and token management.

The node listens on port 20000 + node_index (see Run Rubix Locally). All examples below use port 20000. Adjust to match your node.

Common Response Envelope

Every endpoint returns the same envelope:

{
  "status": true,
  "message": "Got DID created successfully",
  "result": { /* endpoint-specific payload */ }
}

status: true on success, false on failure.
message: human-readable status.
result: endpoint-specific payload (object, array, string, or null).

Asynchronous Signature Flow

Several operations (RBT transfer, DID registration, smart contract deploy/execute, NFT create, FT create) are asynchronous and require a password to complete. They follow this two-step flow:

Call the operation endpoint. The response contains an id and "message": "Password needed".
Call POST /rubix/v1/signature with the id and the private key password (default: mypassword) to complete the operation.

Example first-response:

{
  "status": true,
  "message": "Password needed",
  "result": {
    "id": "62352DFA-4654-45E1-8A31-15BDF9513B52",
    "mode": 4,
    "hash": null,
    "only_priv_key": false
  }
}

Then complete via POST /rubix/v1/signature (see Signatures).

DID Management

Create DID

Endpoint: POST /rubix/v1/dids/create

Create a new DID. The request body is JSON.

Request body:

{
  "password": "mypassword",
  "public_key": "",
  "private_key": "",
  "mnemonic": "",
  "childPath": 0
}

password [string]: Password used to encrypt the private key file (default: mypassword).
public_key [string]: (Optional) Hex of an existing public key. Creates a DID bound to that key.
private_key [string]: (Optional) Path to an existing private key file.
mnemonic [string]: (Optional) BIP-39 mnemonic phrase to restore an existing DID.
childPath [int]: BIP child path (default 0).

curl:

curl -X POST 'http://localhost:20000/rubix/v1/dids/create' \
  -H 'Content-Type: application/json' \
  -d '{"password":"mypassword"}'

Response:

{
  "status": true,
  "message": "DID created successfully",
  "result": {
    "did": "bafybmiaiudnmnbpr2kst26tf56vsnsklncucflb6er566twzrk4itryfom",
    "peer_id": "12D3KooWRK3CzoVYGdcMZqPYHJTkdnWZTTZqyAaSgFFETapBmT97"
  }
}

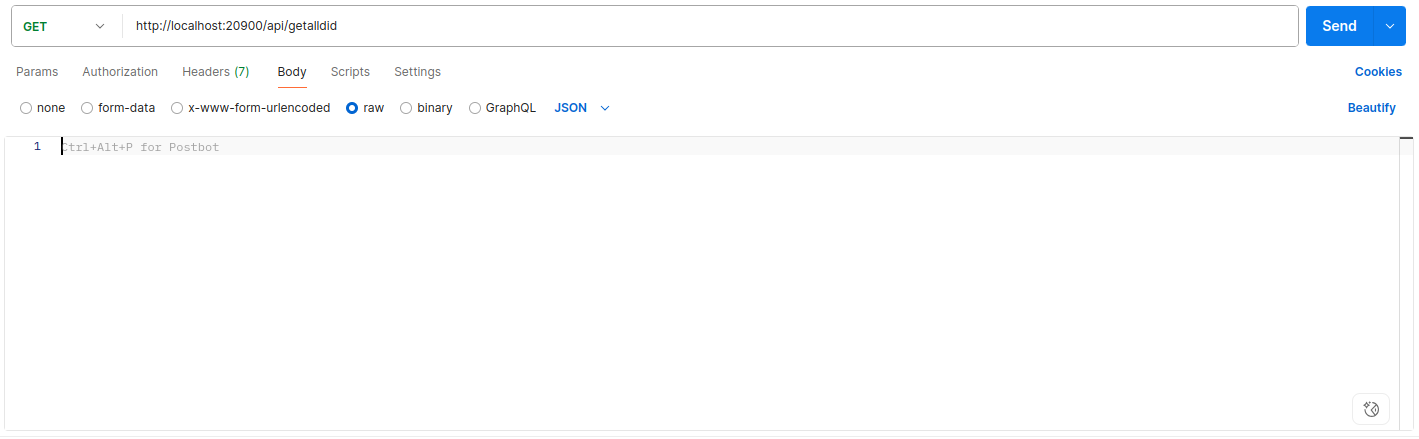

Get All DIDs

Endpoint: GET /rubix/v1/dids

Returns all DIDs hosted on the node.

curl:

curl -X GET 'http://localhost:20000/rubix/v1/dids'

Register DID

Endpoint: POST /rubix/v1/dids/{did}/register

Publish the DID across the network so other nodes can discover it. This is an async signature flow.

curl:

curl -X POST 'http://localhost:20000/rubix/v1/dids/bafybmicggfkxfz667vnra3datk5h3y5el24ir7gx7tciciaaoniaxnadwi/register'

DID Balances

Get Combined Balance

Endpoint: GET /rubix/v1/dids/{did}/balances

Returns RBT, FT, and NFT balances for the DID in a single call.

curl:

curl -X GET 'http://localhost:20000/rubix/v1/dids/bafybmiaflq2dxcg5frq5o5myoqtk6zle65okfnwb6y2tjpav4lsfwgknui/balances'

Response:

{
  "status": true,
  "message": "Got account info successfully",
  "result": {
    "did": "bafybmiaflq2dxcg5frq5o5myoqtk6zle65okfnwb6y2tjpav4lsfwgknui",
    "rbt_balance": [ /* RBT info */ ],
    "ft_balance": [ /* FT info */ ],
    "nft_balance": [ /* NFT info */ ]
  }
}

Get RBT Balance

Endpoint: GET /rubix/v1/dids/{did}/balances/rbt

curl:

curl -X GET 'http://localhost:20000/rubix/v1/dids/bafybmiaflq2dxcg5frq5o5myoqtk6zle65okfnwb6y2tjpav4lsfwgknui/balances/rbt'

Get FT Balance

Endpoint: GET /rubix/v1/dids/{did}/balances/ft

curl:

curl -X GET 'http://localhost:20000/rubix/v1/dids/bafybmiaflq2dxcg5frq5o5myoqtk6zle65okfnwb6y2tjpav4lsfwgknui/balances/ft'

Get NFT Balance

Endpoint: GET /rubix/v1/dids/{did}/balances/nft

curl:

curl -X GET 'http://localhost:20000/rubix/v1/dids/bafybmiaflq2dxcg5frq5o5myoqtk6zle65okfnwb6y2tjpav4lsfwgknui/balances/nft'

Transactions

The transactions API is unified: a single endpoint handles RBT transfers, FT transfers, NFT transfers, and smart contract deployments/executions.

Initiate Transaction

Endpoint: POST /rubix/v1/tx

This is an async signature flow. The body specifies what is being transferred via the tokens object.

Request body:

{
  "initiator": "string (sender DID)",
  "owner": "string (receiver DID)",
  "tokens": {
    "rbt": 0.0,
    "ft": [
      { "ftName": "string", "numberOfFts": 0, "creatorDID": "string" }
    ],
    "nft": [
      { "nftId": "string", "value": 0.0, "data": "string", "parentNFTId": "" }
    ],
    "smartContract": [
      { "smartContractId": "string", "value": 0.0, "data": "string" }
    ],
    "transferNftOwnership": false
  },
  "memo": "string"
}

initiator [string]: DID initiating the transaction (sender, deployer, or executor).
owner [string]: DID that will own the result (receiver, or new contract owner).
tokens.rbt [float]: RBT amount to transfer (set to 0 if not transferring RBT).
tokens.ft [array]: Fungible tokens being transferred.
tokens.nft [array]: NFTs being transferred. Set parentNFTId to mint a child NFT linked to the named parent.
tokens.smartContract [array]: Smart contracts being deployed or executed.
tokens.transferNftOwnership [bool]: Whether to transfer ownership (vs. just executing) of the NFT.
memo [string]: Optional memo attached to the transaction.

RBT transfer example:

{
  "initiator": "bafybmigxslkovkt3rirvtpvscskor4ys223fjdetkzu3drbrxhp3s7t5ui",
  "owner": "bafybmicggfkxfz667vnra3datk5h3y5el24ir7gx7tciciaaoniaxnadwi",
  "tokens": { "rbt": 1.0 },
  "memo": "test transfer"
}

FT transfer example:

{
  "initiator": "bafybmig7cmpfdcxqbvn3wutczeby2a6o46cnfzmcyoy6imgbnt7qzfwxp4",
  "owner": "bafybmicdvgacsdsscn63eaq3faqdtimros23b4j7bpj2m2wsmjjaxoj47i",
  "tokens": {
    "ft": [{ "ftName": "apple", "numberOfFts": 8, "creatorDID": "bafybmidhjebpnarqite2pf7akpb333svhdkhnyucalxv3aelg3c6iq6aom" }]
  }
}

Smart contract execution example:

{
  "initiator": "bafybmicggfkxfz667vnra3datk5h3y5el24ir7gx7tciciaaoniaxnadwi",
  "owner": "bafybmicggfkxfz667vnra3datk5h3y5el24ir7gx7tciciaaoniaxnadwi",
  "tokens": {
    "smartContract": [{ "smartContractId": "QmW83PT7dKWT5ccBvQvSmkSQJNbWR5hMheQ3n6vckwDFkE", "value": 0, "data": "Red" }]
  },
  "memo": "executing smart contract"
}

curl:

curl -X POST 'http://localhost:20000/rubix/v1/tx' \
  -H 'Content-Type: application/json' \
  -d '{
    "initiator": "bafybmigxslkovkt3rirvtpvscskor4ys223fjdetkzu3drbrxhp3s7t5ui",
    "owner": "bafybmicggfkxfz667vnra3datk5h3y5el24ir7gx7tciciaaoniaxnadwi",
    "tokens": { "rbt": 1.0 },
    "memo": "test transfer"
  }'

List Transactions

Endpoint: GET /rubix/v1/tx

Returns all transactions known to the node.

Get Transaction by ID

Endpoint: GET /rubix/v1/tx/{tx_id}

curl:

curl -X GET 'http://localhost:20000/rubix/v1/tx/aee95cdb9db8794b988063e29400198c3fc741f9f461faae8c83d02119e1d9d6'

Get Transactions by DID and Token Type

Endpoint: GET /rubix/v1/tx/{did}/{token_type}

Path params:

did: DID to filter by.
token_type: one of rbt, nft, ft, smartContract.

curl:

curl -X GET 'http://localhost:20000/rubix/v1/tx/bafybmiaflq2dxcg5frq5o5myoqtk6zle65okfnwb6y2tjpav4lsfwgknui/rbt'

Sync Transaction Chain

Endpoint: POST /rubix/v1/sync-transaction-chain

Returns ordered transaction chains for the requested token IDs.

Request body:

{
  "did": "string",
  "token_ids": ["string"],
  "exclude_transaction_ids": ["string"]
}

Signatures

Signature Response

Endpoint: POST /rubix/v1/signature

Used to supply the password for an in-flight async operation (RBT transfer, register DID, deploy/execute SC, etc.).

Request body:

{
  "id": "string (id from the initial response)",
  "password": "mypassword",
  "signature": ""
}

curl:

curl -X POST 'http://localhost:20000/rubix/v1/signature' \
  -H 'Content-Type: application/json' \
  -d '{"id":"62352DFA-4654-45E1-8A31-15BDF9513B52","password":"mypassword"}'

Arbitrary Signature

Endpoint: POST /rubix/v1/signature/arbitrary

Request a signature on an arbitrary message.

Request body:

{
  "signer_did": "string",
  "msg_to_sign": "string"
}

This is an async signature flow.

Verify Arbitrary Signature

Endpoint: GET /rubix/v1/signature/verify

Query params: signer_did, signed_msg, signature.

curl:

curl -X GET 'http://localhost:20000/rubix/v1/signature/verify?signer_did=bafybmi...&signed_msg=hello&signature=304402...'

Smart Contracts

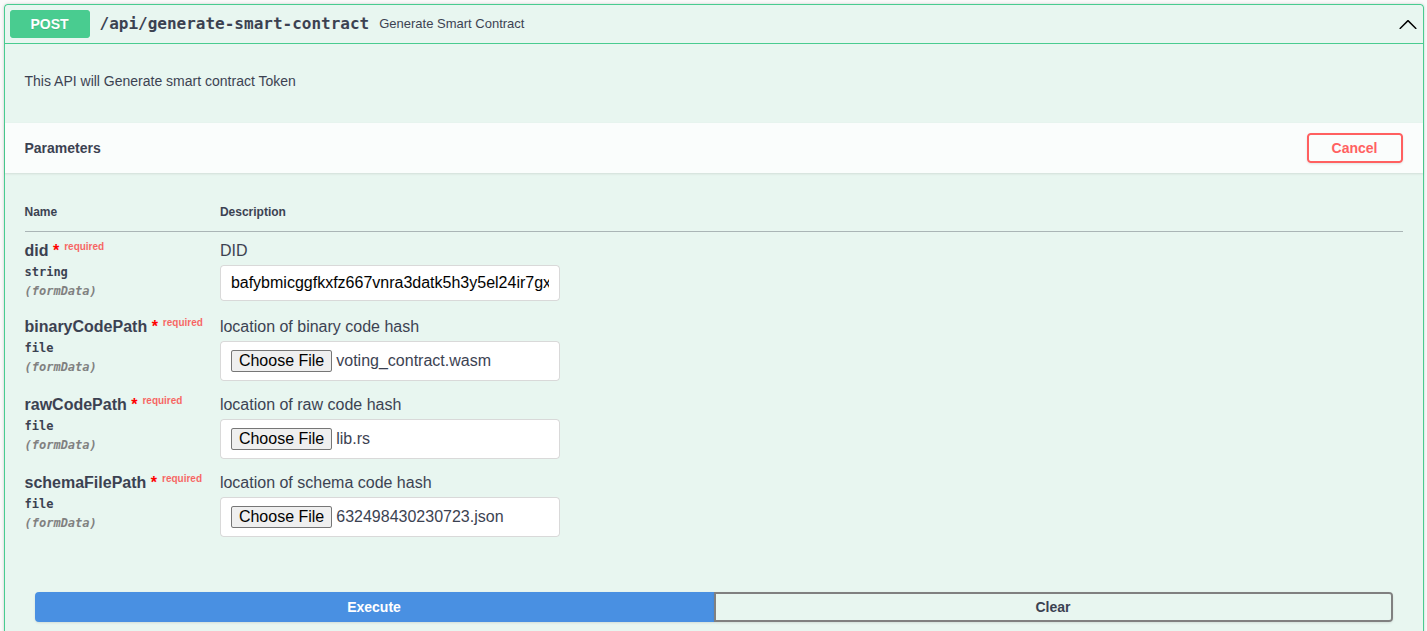

Generate Smart Contract

Endpoint: POST /rubix/v1/smart_contracts/generate

multipart/form-data request.

Form fields:

did [string]: DID generating the smart contract.
binaryCodePath [file]: Compiled WASM file (.wasm).
rawCodePath [file]: Raw source file (.rs).

curl:

curl -X POST 'http://localhost:20000/rubix/v1/smart_contracts/generate' \
  -F 'did=bafybmicggfkxfz667vnra3datk5h3y5el24ir7gx7tciciaaoniaxnadwi' \
  -F 'binaryCodePath=@./contract.wasm' \
  -F 'rawCodePath=@./contract.rs'

Response:

{
  "status": true,
  "message": "Smart contract generated successfully",
  "result": "QmW83PT7dKWT5ccBvQvSmkSQJNbWR5hMheQ3n6vckwDFkE"
}

List Smart Contracts

Endpoint: GET /rubix/v1/smart_contracts

Get Smart Contract Chain

Endpoint: GET /rubix/v1/smart_contracts/{contract_id}/chain

curl:

curl -X GET 'http://localhost:20000/rubix/v1/smart_contracts/QmW83PT7dKWT5ccBvQvSmkSQJNbWR5hMheQ3n6vckwDFkE/chain'

Endpoint: GET /rubix/v1/smart_contracts/subscribe?smartContractToken=...

Register Callback URL

Endpoint: POST /rubix/v1/smart_contracts/register_callback

Request body:

{
  "CallBackURL": "http://localhost:8080/api/contract-input",
  "SmartContractToken": "QmW83PT7dKWT5ccBvQvSmkSQJNbWR5hMheQ3n6vckwDFkE"
}

Fetch Smart Contract

Endpoint: GET /rubix/v1/smart_contracts/fetch?smartContractToken=...

Downloads all files related to the smart contract into a local folder.

Deploy and Execute Smart Contract

Both operations now go through the unified POST /rubix/v1/tx endpoint with a tokens.smartContract entry. See the smart contract execution example above.

NFTs

Create NFT

Endpoint: POST /rubix/v1/nfts/generate

multipart/form-data request.

Form fields:

did [string]: DID creating the NFT.
metadata [file]: JSON file with NFT metadata.
artifact [file]: The actual NFT file (image, etc.).

curl:

curl -X POST 'http://localhost:20000/rubix/v1/nfts/generate' \
  -F 'did=bafybmiaflq2dxcg5frq5o5myoqtk6zle65okfnwb6y2tjpav4lsfwgknui' \
  -F 'metadata=@./metadata.json' \
  -F 'artifact=@./image.jpg'

Response:

{
  "status": true,
  "message": "NFT Token generated successfully",
  "result": "QmRjtbUxw8yh1DN2JjzDqm3wuedVECv5B3jDUzWq9QUEK1"
}

List NFTs

Endpoint: GET /rubix/v1/nfts

Get NFT Chain

Endpoint: GET /rubix/v1/nfts/{nft_id}/chain

curl:

curl -X GET 'http://localhost:20000/rubix/v1/nfts/QmRjtbUxw8yh1DN2JjzDqm3wuedVECv5B3jDUzWq9QUEK1/chain'

Get Child NFTs

Endpoint: GET /rubix/v1/nfts/{nft_id}/children

Returns NFTs whose parent is the given NFT. Originator-only.

Get Parent NFT

Endpoint: GET /rubix/v1/nfts/{nft_id}/parent

Returns the parent NFT (id + value), or null if none. Originator-only.

Endpoint: GET /rubix/v1/nfts/subscribe?nft=<nft_id>

Fetch NFT

Endpoint: GET /rubix/v1/fetch-nft?nft=<nft_id>

Downloads NFT files into a local folder.

Deploy, Execute, and Transfer NFT

All NFT transactions now go through the unified POST /rubix/v1/tx endpoint with a tokens.nft entry.

FTs

Mint FT

Endpoint: POST /rubix/v1/fts/mint

This is an async signature flow.

Request body:

{
  "did": "string",
  "ft_name": "string",
  "ft_count": 0,
  "token_count": 0,
  "ft_num_start_index": 0
}

did [string]: Creator DID.
ft_name [string]: Name or symbol.
ft_count [int]: Total supply to mint.
token_count [int]: RBT amount to back the FTs.
ft_num_start_index [int]: Starting index for FT numbering.

curl:

curl -X POST 'http://localhost:20000/rubix/v1/fts/mint' \
  -H 'Content-Type: application/json' \
  -d '{
    "did": "bafybmidhjebpnarqite2pf7akpb333svhdkhnyucalxv3aelg3c6iq6aom",
    "ft_name": "apple",
    "ft_count": 100,
    "token_count": 1
  }'

List FTs

Endpoint: GET /rubix/v1/fts

Transfer FT

FT transfers go through the unified POST /rubix/v1/tx endpoint with a tokens.ft entry.

Node, Bootstrap & Quorum Management

These operational endpoints manage the node, its peers, bootstrap list, quorums, and local/test token minting. Like everything else, they are served under /rubix/v1/....

Node

Endpoint	Method	Description
`/rubix/v1/node/start`	GET	Start the core. No input.
`/rubix/v1/node/shutdown`	POST	Shut down the node. No input.
`/rubix/v1/node/peer_id`	GET	Returns this node's Peer ID. No input.

Ping: GET /rubix/v1/node/ping?peerID=<peer_id>

Ping a peer by its Peer ID. Query param peerID is required.

Add Peer Details: POST /rubix/v1/node/add_peers

Manually add a mapping from a peer's DID to its Peer ID. The field names are matched case-insensitively, so did and peerID work as well as DID and PeerID.

{
  "DID": "string",
  "PeerID": "string"
}

Bootstrap

Add / Remove Bootstrap: POST /rubix/v1/bootstrap/add, POST /rubix/v1/bootstrap/remove

Add or remove bootstrap peers. Each peer must be a full multiaddress (starting with /).

{
  "peers": ["/ip4/127.0.0.1/tcp/4001/p2p/12D3KooW..."]
}

Endpoint	Method	Description
`/rubix/v1/bootstrap`	GET	List all bootstrap peers. No input.
`/rubix/v1/bootstrap/remove_all`	POST	Remove all bootstrap peers. No input.

Quorums

Add Quorum: POST /rubix/v1/quorums/add

Add a single quorum DID to the node's quorum list. Call once per quorum.

{ "did": "string" }

Setup Quorum: POST /rubix/v1/quorums/setup

Set the node's own DID up as a quorum.

{
  "did": "string",
  "password": "string",
  "priv_password": "string"
}

Check Quorum Status: GET /rubix/v1/quorums/status?quorumAddress=<did>

Check whether a quorum is reachable and set up. Query param quorumAddress is the quorum's DID.

Endpoint	Method	Description
`/rubix/v1/quorums`	GET	List all configured quorums. No input.
`/rubix/v1/quorums/remove_all`	GET	Remove all quorums. No input.

Tokens

Generate Local RBT: POST /rubix/v1/tokens/generate_local_rbt

Mint RBT on a localnet for testing. This is an async signature flow.

{
  "did": "string",
  "number_of_tokens": 1,
  "start_index": 0
}

Generate Faucet Test Tokens: POST /rubix/v1/tokens/generate_faucet_test

Issue testnet RBT via the faucet flow. This is an async signature flow.

{
  "did": "string",
  "token_count": 1
}

Get All Tokens: GET /rubix/v1/tokens?type=<token_type>&did=<did>

Returns all tokens of the given type for a DID. Query params: type, did.

Setup DID from Key Files

Endpoint: POST /rubix/v1/dids/setup

Set up a DID from existing key files. multipart/form-data with a did_config field (JSON) plus the key files.

Common Response Envelope​

Asynchronous Signature Flow​

DID Management​

Create DID​

Get All DIDs​

Register DID​

DID Balances​

Get Combined Balance​

Get RBT Balance​

Get FT Balance​

Get NFT Balance​

Transactions​

Initiate Transaction​

List Transactions​

Get Transaction by ID​

Get Transactions by DID and Token Type​

Sync Transaction Chain​

Signatures​

Signature Response​

Arbitrary Signature​

Verify Arbitrary Signature​

Smart Contracts​

Generate Smart Contract​

List Smart Contracts​

Get Smart Contract Chain​

Subscribe to Smart Contract​

Register Callback URL​

Fetch Smart Contract​

Deploy and Execute Smart Contract​

NFTs​

Create NFT​

List NFTs​

Get NFT Chain​

Get Child NFTs​

Get Parent NFT​

Subscribe to NFT​

Fetch NFT​

Deploy, Execute, and Transfer NFT​

FTs​

Mint FT​

List FTs​

Transfer FT​

Node, Bootstrap & Quorum Management​

Node​

Bootstrap​

Quorums​

Tokens​

Setup DID from Key Files​

Common Response Envelope

Asynchronous Signature Flow

DID Management

Create DID

Get All DIDs

Register DID

DID Balances

Get Combined Balance

Get RBT Balance

Get FT Balance

Get NFT Balance

Transactions

Initiate Transaction

List Transactions

Get Transaction by ID

Get Transactions by DID and Token Type

Sync Transaction Chain

Signatures

Signature Response

Arbitrary Signature

Verify Arbitrary Signature

Smart Contracts

Generate Smart Contract

List Smart Contracts

Get Smart Contract Chain

Subscribe to Smart Contract

Register Callback URL

Fetch Smart Contract

Deploy and Execute Smart Contract

NFTs

Create NFT

List NFTs

Get NFT Chain

Get Child NFTs

Get Parent NFT

Subscribe to NFT

Fetch NFT

Deploy, Execute, and Transfer NFT

FTs

Mint FT

List FTs

Transfer FT

Node, Bootstrap & Quorum Management

Node

Bootstrap

Quorums

Tokens

Setup DID from Key Files
